잠들면 TV를 대신 꺼주는 타이머

2014-07-28 07:07:40

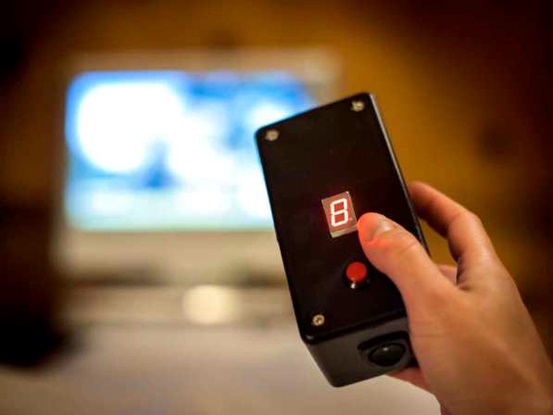

개요

아직도여러모텔에서는취침타이머기능이없는TV가설치되어있습니다.

특히많이여행을다니는사람들은느낄것입니다. 그래서원하는시간이지난후에

어떤TV라도끌수잇는타이머인TV-G0-SLEEP을만들었습니다.

여러분도반나절이면만들수있습니다.

이타이머는오픈소스인 TV-B-Gone 라이브러리와제가직접작성한몇줄의코드가

동작하는아두이노마이크로컨트롤러로제작했습니다. 푸시버튼을눌러예약시간만

설정하면, 7-세그먼트디스플레이에시간이표시됩니다. 정해진시간이지나면

아두이노가적외선 LED를통해지금까지알려진모든 TV의 ‘종료’ 신호를보내게

되면 TV가꺼지지요.

동영상

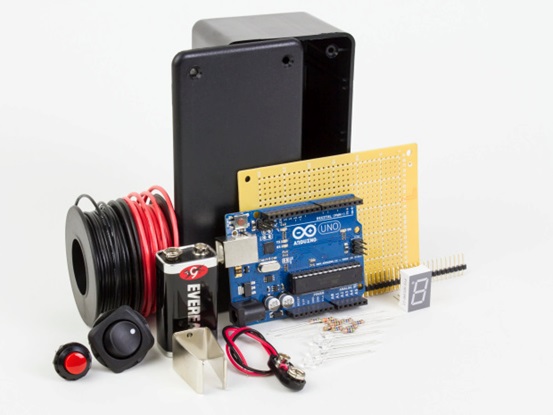

부품

만드는 방법

1. 헤더핀설치하기

male헤더핀의 3 블럭정도를분리한후female헤더안에설치합니다.7개핀블럭을

8부터GND까지, 5개핀블록을 6부터 2까지, 4개핀블럭을 5V, GND,GND,vin에

설치합니다.

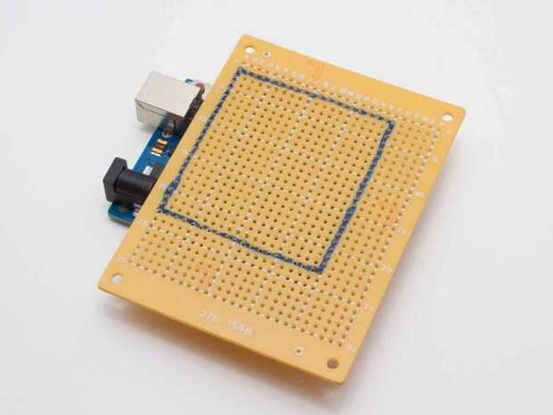

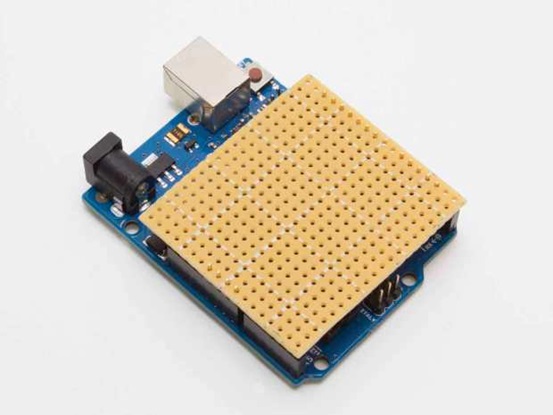

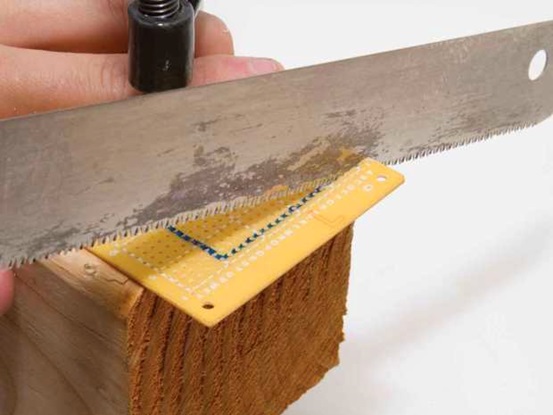

2. 회로에표시하고절단하기

아두이노부분과는구리부분이직면하는사이즈가맞는perf보드를만들어야합니다.

핀위에표시한후아두이노보다약간작게손질하세요. 보드에끝에 1~2정도

구멍열들을남겨주세요.

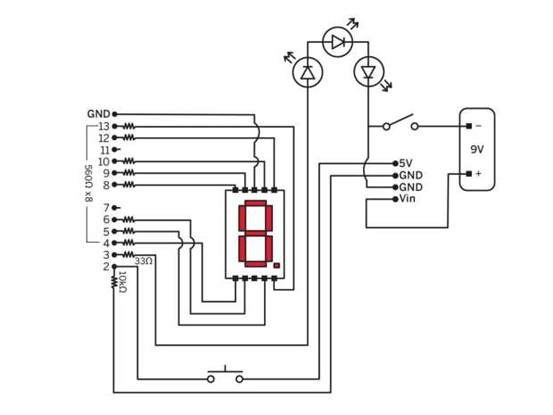

회로도

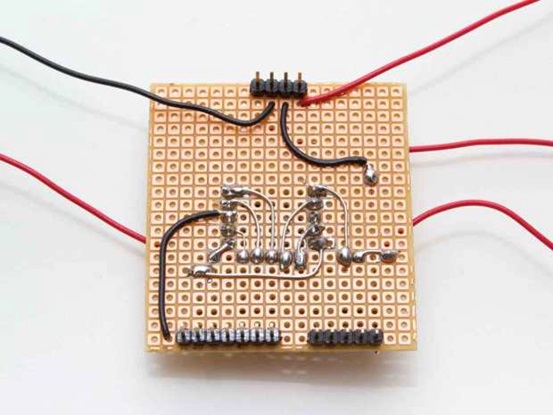

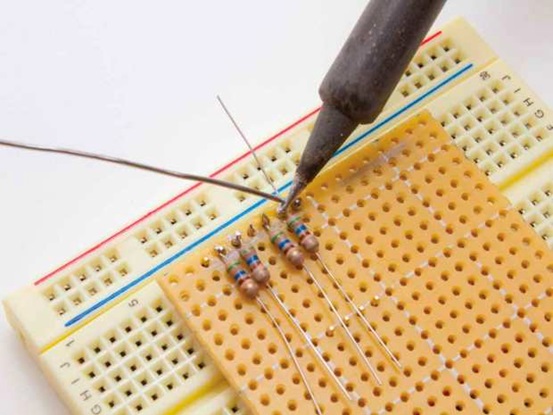

회로도에따라서perf보드위에회로를납땜하세요. LED디스플레이를연결하기위해

560 Ω의저항을사용합니다. 아두이노의핀 13을디스플레이의소수점과연결합니다.
PWM핀이핀 3와타이머를공유하기때문에핀 11은사용하지않습니다.

TV-B-GONE프로그램은핀3의원격제어하는시그널을만드는타이머에사용됩니다.
결과적으로핀 11위에붙여진LED는코드가시작할때깜빡거리기시작할것입니다.

33Ω저항은 3개의적외선LED를통해전류의흐름을제어할것입니다.

수명을극대화하기위해서최대밝기를선택합니다.

핀 2는두개의연결을가집니다: 10kΩ저항을통해접지하거나아두이노의 5볼트

레퍼런스핀을푸시버튼을통해서접지하기위해서. 버튼이눌러지지않으면핀 2는off

상태가됩니다. 버튼이눌리면, 핀은 5볼트레퍼런스핀과연결됩니다. 그리고on상태가

됩니다. 10kΩ저항은 5V과GND사이의전류흐름을제한합니다.

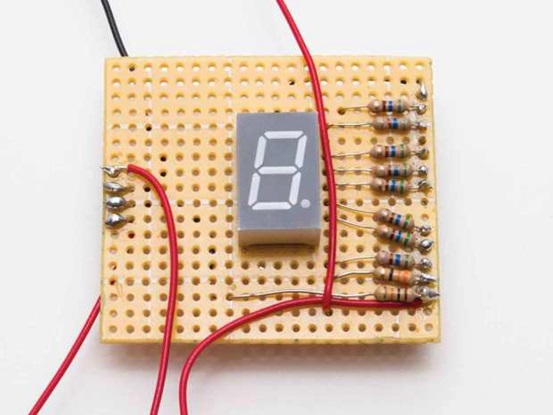

4. 헤더삽입하기

위에보이는사진처럼perf보드(구리부분)의바닥에서헤더를접합하고납땜하세요.

보드의윗부분에중간에헤더와 2열을두고 7-세그컨트디스플레이를삽입하세요.

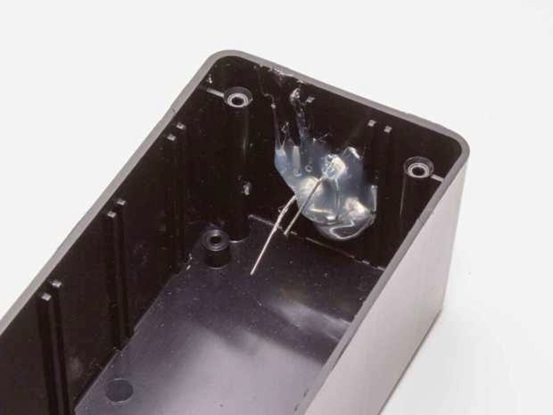

5. 적외선LED를탑재하기

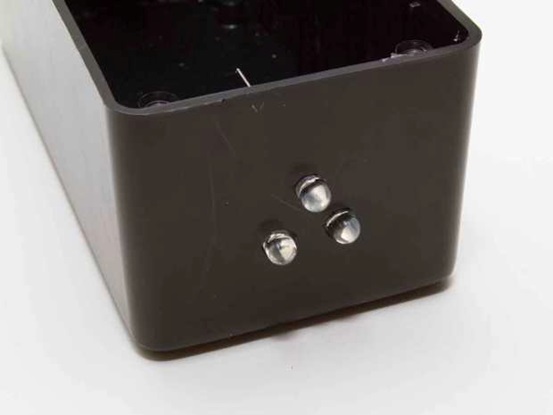

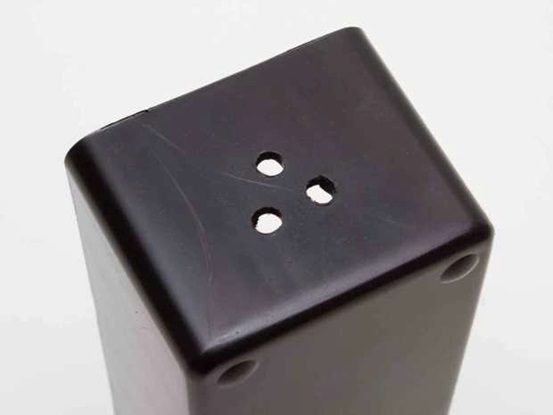

인클로저에3개의구멍을뚫으세요.양극, 음극이직렬로배열될수있도록 3개의적외선

LED를넣으세요. LED들뒷부분에접착체로붙여주세요. LED를 3개쓰는이유는LED를

추가함으로써그것들중하나의빔이TV IC 수신기에도달할가능성을높이기위해서

입니다.

6. 스위치탑재하기

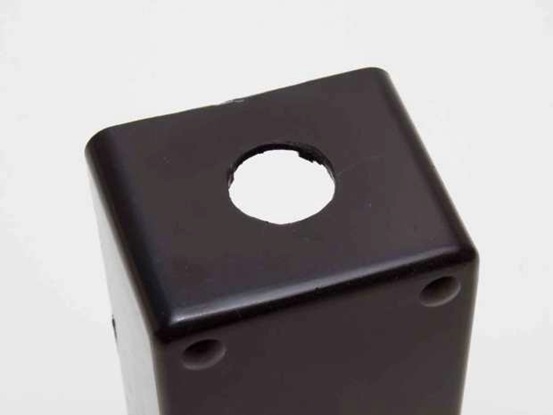

인클로저의끝부분에on/off 스위치를설치합니다.

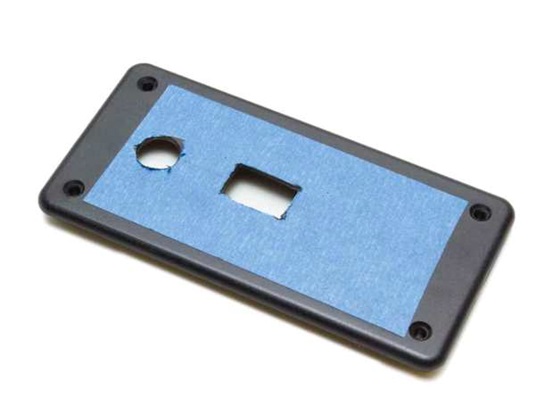

7. 디스플레이탑재하기

인클로저덮개안에, 7-세그먼트디스플레이를위한직사각형구멍을만듭니다.

아두이노는radioshack 인클로저폭에겨우맞습니다. 그래서절단하기전에신중이정렬을

확인합니다. 디스플레이아래에푸시버튼스위치를위한공간을남겨주세요. 구멍을

만드세요.

직사각형구멍에디스플레이를넣으세요. 양면테이프를사용해서덮개아래보드를

넣으세요. 푸스버튼을설치하세요.

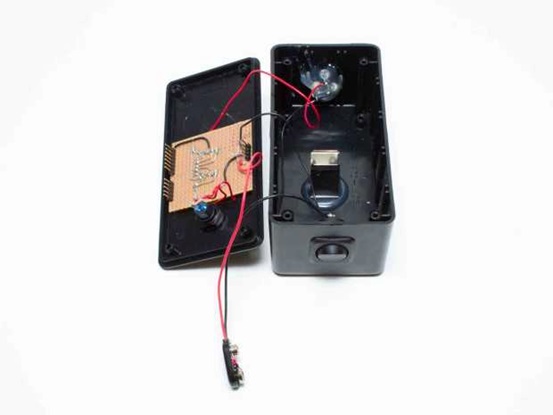

Perf보드와스위치IR LED들을납땝하세요. On/off스위치가배터리한쪽에서접지를

방해할것입니다.

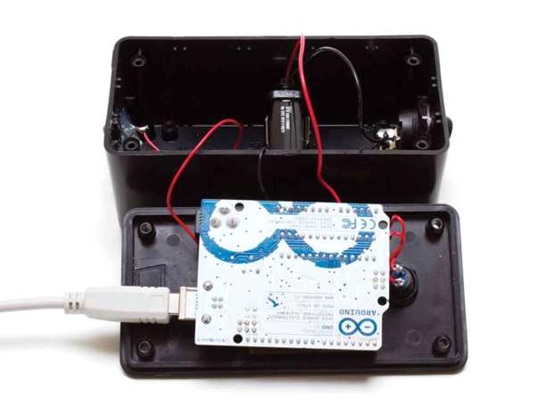

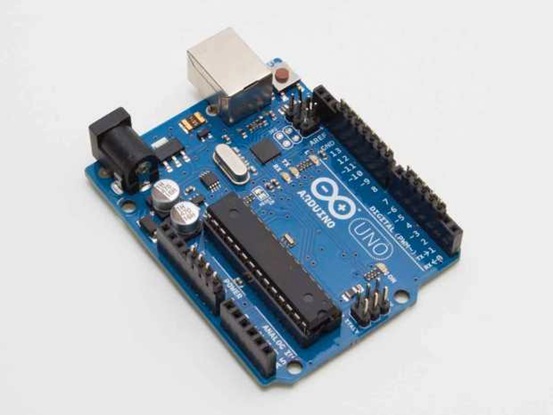

8. 아두이노를설치하고프로그래밍하세요.

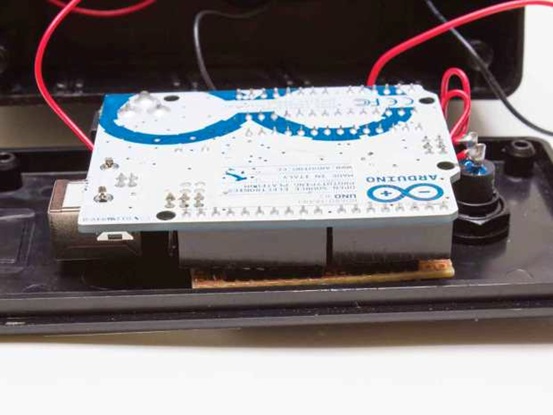

해더핀위에아두이노를설치하세요. 라인을잘맞추세요.

아두이노와컴퓨터를연결하기위해USB케이블을이용하세요. Universal Sleep Timer

아두이노코드와라이브러리를다운도르하세요. 개발툴에서열고장치에업로드해주세요.

소스코드

<main.h>
#include <avr/pgmspace.h>

// The TV-B-Gone for Arduino can use
// either the EU or the NA database of POWER CODES
// EU is for Europe, Middle East, Australia, New Zealand, and some countries in Africa and South America
// NA is for North America, Asia, and the rest of the world not covered by EU

// Two regions!
#define NA 1
#define EU 0

// What pins do what
#define DBG 12
#define LED 13
#define IRLED 3
#define TRIGGER 2
#define REGIONSWITCH 5

// Lets us calculate the size of the NA/EU databases
#define NUM_ELEM(x) (sizeof (x) / sizeof (*(x)));

// set define to 0 to turn off debug output
#define DEBUG 0
#define DEBUGP(x) if (DEBUG == 1) { x ; }

// Shortcut to insert single, non-optimized-out nop
#define NOP __asm__ __volatile__ ("nop")

// Tweak this if neccessary to change timing
#define DELAY_CNT 25

// Makes the codes more readable. the OCRA is actually
// programmed in terms of 'periods' not 'freqs' - that
// is, the inverse!
#define freq_to_timerval(x) (F_CPU / 8 / x - 1)

// The structure of compressed code entries
struct IrCode {
uint8_t timer_val;
uint8_t numpairs;
uint8_t bitcompression;
uint16_t const *times;
uint8_t const*codes;
};

<WORLDcodes.cpp>
/*
TV-B-Gone for Arduino version 0.001
Ported to Arduino by Ken Shirriff, Dec 3, 2009
http://arcfn.com

The original code is:
TV-B-Gone Firmware version 1.2
for use with ATtiny85v and v1.2 hardware
(c) Mitch Altman + Limor Fried 2009

*/
#include "main.h"

//Codes captured from Generation 3 TV-B-Gone by Limor Fried & Mitch Altman
// table of POWER codes

const uint16_t code_na000Times[] PROGMEM = {
60, 60,
60, 2700,
120, 60,
240, 60,
};
const uint8_t code_na000Codes[] PROGMEM = {
0xE2,
0x20,
0x80,
0x78,
0x88,
0x20,
0x10,
};
conststruct IrCode code_na000Code PROGMEM = {
freq_to_timerval(38400),
26, // # of pairs
2, // # of bits per index
code_na000Times,
code_na000Codes
};

const uint16_t code_na001Times[] PROGMEM = {
50, 100,
50, 200,
50, 800,
400, 400,
};
const uint8_t code_na001Codes[] PROGMEM = {
0xD5,
0x41,
0x11,
0x00,
0x14,
0x44,
0x6D,
0x54,
0x11,
0x10,
0x01,
0x44,
0x45,
};
conststruct IrCode code_na001Code PROGMEM = {
freq_to_timerval(57143),
52, // # of pairs
2, // # of bits per index
code_na001Times,
code_na001Codes
};
const uint16_t code_na002Times[] PROGMEM = {
42, 46,
42, 133,
42, 7519,
347, 176,
347, 177,
};
const uint8_t code_na002Codes[] PROGMEM = {
0x60,
0x80,
0x00,
0x00,
0x00,
0x08,
0x00,
0x00,
0x00,
0x20,
0x00,
0x00,
0x04,
0x12,
0x48,
0x04,
0x12,
0x48,
0x2A,
0x02,
0x00,
0x00,
0x00,
0x00,
0x20,
0x00,
0x00,
0x00,
0x80,
0x00,
0x00,
0x10,
0x49,
0x20,
0x10,
0x49,
0x20,
0x80,
};
conststruct IrCode code_na002Code PROGMEM = {
freq_to_timerval(37037),
100, // # of pairs
3, // # of bits per index
code_na002Times,
code_na002Codes
};
const uint16_t code_na003Times[] PROGMEM = {
26, 185,
27, 80,
27, 185,
27, 4549,
};
const uint8_t code_na003Codes[] PROGMEM = {
0x15,
0x5A,
0x65,
0x67,
0x95,
0x65,
0x9A,
0x9B,
0x95,
0x5A,
0x65,
0x67,
0x95,
0x65,
0x9A,
0x99,
};
conststruct IrCode code_na003Code PROGMEM = {
freq_to_timerval(38610),
64, // # of pairs
2, // # of bits per index
code_na003Times,
code_na003Codes
};
const uint16_t code_na004Times[] PROGMEM = {
55, 57,
55, 170,
55, 3949,
55, 9623,
56, 0,
898, 453,
900, 226,
};
const uint8_t code_na004Codes[] PROGMEM = {
0xA0,
0x00,
0x01,
0x04,
0x92,
0x48,
0x20,
0x80,
0x40,
0x04,
0x12,
0x09,
0x2B,
0x3D,
0x00,
};
conststruct IrCode code_na004Code PROGMEM = {
freq_to_timerval(38610),
38, // # of pairs
3, // # of bits per index
code_na004Times,
code_na004Codes
};
const uint16_t code_na005Times[] PROGMEM = {
88, 90,
88, 91,
88, 181,
88, 8976,
177, 91,
};
const uint8_t code_na005Codes[] PROGMEM = {
0x10,
0x92,
0x49,
0x46,
0x33,
0x09,
0x24,
0x94,
0x60,
};
conststruct IrCode code_na005Code PROGMEM = {
freq_to_timerval(35714),
24, // # of pairs
3, // # of bits per index
code_na005Times,
code_na005Codes
};
const uint16_t code_na006Times[] PROGMEM = {
50, 62,
50, 172,
50, 4541,
448, 466,
450, 465,
};
const uint8_t code_na006Codes[] PROGMEM = {
0x64,
0x90,
0x00,
0x04,
0x90,
0x00,
0x00,
0x80,
0x00,
0x04,
0x12,
0x49,
0x2A,
0x12,
0x40,
0x00,
0x12,
0x40,
0x00,
0x02,
0x00,
0x00,
0x10,
0x49,
0x24,
0x90,
};
conststruct IrCode code_na006Code PROGMEM = {
freq_to_timerval(38462),
68, // # of pairs
3, // # of bits per index
code_na006Times,
code_na006Codes
};
const uint16_t code_na007Times[] PROGMEM = {
49, 49,
49, 50,
49, 410,
49, 510,
49, 12107,
};
const uint8_t code_na007Codes[] PROGMEM = {
0x09,
0x94,
0x53,
0x29,
0x94,
0xD9,
0x85,
0x32,
0x8A,
0x65,
0x32,
0x9B,
0x20,
};
conststruct IrCode code_na007Code PROGMEM = {
freq_to_timerval(39216),
34, // # of pairs
3, // # of bits per index
code_na007Times,
code_na007Codes
};
const uint16_t code_na008Times[] PROGMEM = {
56, 58,
56, 170,
56, 4011,
898, 450,
900, 449,
};
const uint8_t code_na008Codes[] PROGMEM = {
0x64,
0x00,
0x49,
0x00,
0x92,
0x00,
0x20,
0x82,
0x01,
0x04,
0x10,
0x48,
0x2A,
0x10,
0x01,
0x24,
0x02,
0x48,
0x00,
0x82,
0x08,
0x04,
0x10,
0x41,
0x20,
0x90,
};
conststruct IrCode code_na008Code PROGMEM = {
freq_to_timerval(38462),
68, // # of pairs
3, // # of bits per index
code_na008Times,
code_na008Codes
};
const uint16_t code_na009Times[] PROGMEM = {
53, 56,
53, 171,
53, 3950,
53, 9599,
898, 451,
900, 226,
};
const uint8_t code_na009Codes[] PROGMEM = {
0x84,
0x90,
0x00,
0x20,
0x80,
0x08,
0x00,
0x00,
0x09,
0x24,
0x92,
0x40,
0x0A,
0xBA,
0x40,
};
conststruct IrCode code_na009Code PROGMEM = {
freq_to_timerval(38462),
38, // # of pairs
3, // # of bits per index
code_na009Times,
code_na009Codes
};
const uint16_t code_na010Times[] PROGMEM = {
51, 55,
51, 158,
51, 2286,
841, 419,
};
const uint8_t code_na010Codes[] PROGMEM = {
0xD4,
0x00,
0x15,
0x10,
0x25,
0x00,
0x05,
0x44,
0x09,
0x40,
0x01,
0x51,
0x01,
};
conststruct IrCode code_na010Code PROGMEM = {
freq_to_timerval(38462),
52, // # of pairs
2, // # of bits per index
code_na010Times,
code_na010Codes
};
const uint16_t code_na011Times[] PROGMEM = {
55, 55,
55, 172,
55, 4039,
55, 9348,
56, 0,
884, 442,
885, 225,
};
const uint8_t code_na011Codes[] PROGMEM = {
0xA0,
0x00,
0x41,
0x04,
0x92,
0x08,
0x24,
0x90,
0x40,
0x00,
0x02,
0x09,
0x2B,
0x3D,
0x00,
};
conststruct IrCode code_na011Code PROGMEM = {
freq_to_timerval(38462),
38, // # of pairs
3, // # of bits per index
code_na011Times,
code_na011Codes
};
const uint16_t code_na012Times[] PROGMEM = {
81, 87,
81, 254,
81, 3280,
331, 336,
331, 337,
};
const uint8_t code_na012Codes[] PROGMEM = {
0x64,
0x12,
0x08,
0x24,
0x00,
0x08,
0x20,
0x10,
0x09,
0x2A,
0x10,
0x48,
0x20,
0x90,
0x00,
0x20,
0x80,
0x40,
0x24,
0x90,
};
conststruct IrCode code_na012Code PROGMEM = {
freq_to_timerval(38462),
52, // # of pairs
3, // # of bits per index
code_na012Times,
code_na012Codes
};
const uint16_t code_na013Times[] PROGMEM = {
53, 55,
53, 167,
53, 2304,
53, 9369,
893, 448,
895, 447,
};
const uint8_t code_na013Codes[] PROGMEM = {
0x80,
0x12,
0x40,
0x04,
0x00,
0x09,
0x00,
0x12,
0x41,
0x24,
0x82,
0x01,
0x00,
0x10,
0x48,
0x24,
0xAA,
0xE8,
};
conststruct IrCode code_na013Code PROGMEM = {
freq_to_timerval(38462),
48, // # of pairs
3, // # of bits per index
code_na013Times,
code_na013Codes
};

/* Duplicate timing table, same as na004 !
const uint16_t code_na014Times[] PROGMEM = {
55, 57,
55, 170,
55, 3949,
55, 9623,
56, 0,
898, 453,
900, 226,
};
*/
const uint8_t code_na014Codes[] PROGMEM = {
0xA0,
0x00,
0x09,
0x04,
0x92,
0x40,
0x24,
0x80,
0x00,
0x00,
0x12,
0x49,
0x2B,
0x3D,
0x00,
};
conststruct IrCode code_na014Code PROGMEM = {
freq_to_timerval(38462),
38, // # of pairs
3, // # of bits per index
code_na004Times,
code_na014Codes
};

/* Duplicate timing table, same as na004 !
const uint16_t code_na015Times[] PROGMEM = {
55, 57,
55, 170,
55, 3949,
55, 9623,
56, 0,
898, 453,
900, 226,
};
*/
const uint8_t code_na015Codes[] PROGMEM = {
0xA0,
0x80,
0x01,
0x04,
0x12,
0x48,
0x24,
0x00,
0x00,
0x00,
0x92,
0x49,
0x2B,
0x3D,
0x00,
};
conststruct IrCode code_na015Code PROGMEM = {
freq_to_timerval(38462),
38, // # of pairs
3, // # of bits per index
code_na004Times,
code_na015Codes
};
const uint16_t code_na016Times[] PROGMEM = {
28, 90,
28, 211,
28, 2507,
};
const uint8_t code_na016Codes[] PROGMEM = {
0x54,
0x04,
0x10,
0x00,
0x95,
0x01,
0x04,
0x00,
0x10,
};
conststruct IrCode code_na016Code PROGMEM = {
freq_to_timerval(34483),
34, // # of pairs
2, // # of bits per index
code_na016Times,
code_na016Codes
};
const uint16_t code_na017Times[] PROGMEM = {
56, 57,
56, 175,
56, 4150,
56, 9499,
898, 227,
898, 449,
};
const uint8_t code_na017Codes[] PROGMEM = {
0xA0,
0x02,
0x48,
0x04,
0x90,
0x01,
0x20,
0x80,
0x40,
0x04,
0x12,
0x09,
0x2A,
0x38,
0x00,
};
conststruct IrCode code_na017Code PROGMEM = {
freq_to_timerval(40000),
38, // # of pairs
3, // # of bits per index
code_na017Times,
code_na017Codes
};
const uint16_t code_na018Times[] PROGMEM = {
51, 55,
51, 161,
51, 2566,
849, 429,
849, 430,
};
const uint8_t code_na018Codes[] PROGMEM = {
0x60,
0x82,
0x08,
0x24,
0x10,
0x41,
0x00,
0x12,
0x40,
0x04,
0x80,
0x09,
0x2A,
0x02,
0x08,
0x20,
0x90,
0x41,
0x04,
0x00,
0x49,
0x00,
0x12,
0x00,
0x24,
0xA8,
0x08,
0x20,
0x82,
0x41,
0x04,
0x10,
0x01,
0x24,
0x00,
0x48,
0x00,
0x92,
0xA0,
0x20,
0x82,
0x09,
0x04,
0x10,
0x40,
0x04,
0x90,
0x01,
0x20,
0x02,
0x48,
};
conststruct IrCode code_na018Code PROGMEM = {
freq_to_timerval(38462),
136, // # of pairs
3, // # of bits per index
code_na018Times,
code_na018Codes
};
const uint16_t code_na019Times[] PROGMEM = {
40, 42,
40, 124,
40, 4601,
325, 163,
326, 163,
};
const uint8_t code_na019Codes[] PROGMEM = {
0x60,
0x10,
0x40,
0x04,
0x80,
0x09,
0x00,
0x00,
0x00,
0x00,
0x10,
0x00,
0x20,
0x10,
0x00,
0x20,
0x80,
0x00,
0x0A,
0x00,
0x41,
0x00,
0x12,
0x00,
0x24,
0x00,
0x00,
0x00,
0x00,
0x40,
0x00,
0x80,
0x40,
0x00,
0x82,
0x00,
0x00,
0x00,
};
conststruct IrCode code_na019Code PROGMEM = {
freq_to_timerval(38462),
100, // # of pairs
3, // # of bits per index
code_na019Times,
code_na019Codes
};
const uint16_t code_na020Times[] PROGMEM = {
60, 55,
60, 163,
60, 4099,
60, 9698,
61, 0,
898, 461,
900, 230,
};
const uint8_t code_na020Codes[] PROGMEM = {
0xA0,
0x10,
0x00,
0x04,
0x82,
0x49,
0x20,
0x02,
0x00,
0x04,
0x90,
0x49,
0x2B,
0x3D,
0x00,
};
conststruct IrCode code_na020Code PROGMEM = {
freq_to_timerval(38462),
38, // # of pairs
3, // # of bits per index
code_na020Times,
code_na020Codes
};
const uint16_t code_na021Times[] PROGMEM = {
48, 52,
48, 160,
48, 400,
48, 2335,
799, 400,
};
const uint8_t code_na021Codes[] PROGMEM = {
0x80,
0x10,
0x40,
0x08,
0x82,
0x08,
0x01,
0xC0,
0x08,
0x20,
0x04,
0x41,
0x04,
0x00,
0x00,
};
conststruct IrCode code_na021Code PROGMEM = {
freq_to_timerval(38462),
38, // # of pairs
3, // # of bits per index
code_na021Times,
code_na021Codes
};
const uint16_t code_na022Times[] PROGMEM = {
53, 60,
53, 175,
53, 4463,
53, 9453,
892, 450,
895, 225,
};
const uint8_t code_na022Codes[] PROGMEM = {
0x80,
0x02,
0x40,
0x00,
0x02,
0x40,
0x00,
0x00,
0x01,
0x24,
0x92,
0x48,
0x0A,
0xBA,
0x00,
};
conststruct IrCode code_na022Code PROGMEM = {
freq_to_timerval(38462),
38, // # of pairs
3, // # of bits per index
code_na022Times,
code_na022Codes
};
const uint16_t code_na023Times[] PROGMEM = {
48, 52,
48, 409,
48, 504,
48, 10461,
};
const uint8_t code_na023Codes[] PROGMEM = {
0xA1,
0x18,
0x61,
0xA1,
0x18,
0x7A,
0x11,
0x86,
0x1A,
0x11,
0x86,
};
conststruct IrCode code_na023Code PROGMEM = {
freq_to_timerval(40000),
44, // # of pairs
2, // # of bits per index
code_na023Times,
code_na023Codes
};
const uint16_t code_na024Times[] PROGMEM = {
58, 60,
58, 2569,
118, 60,
237, 60,
238, 60,
};
const uint8_t code_na024Codes[] PROGMEM = {
0x69,
0x24,
0x10,
0x40,
0x03,
0x12,
0x48,
0x20,
0x80,
0x00,
};
conststruct IrCode code_na024Code PROGMEM = {
freq_to_timerval(38462),
26, // # of pairs
3, // # of bits per index
code_na024Times,
code_na024Codes
};
const uint16_t code_na025Times[] PROGMEM = {
84, 90,
84, 264,
84, 3470,
346, 350,
347, 350,
};
const uint8_t code_na025Codes[] PROGMEM = {
0x64,
0x92,
0x49,
0x00,
0x00,
0x00,
0x00,
0x02,
0x49,
0x2A,
0x12,
0x49,
0x24,
0x00,
0x00,
0x00,
0x00,
0x09,
0x24,
0x90,
};
conststruct IrCode code_na025Code PROGMEM = {
freq_to_timerval(38462),
52, // # of pairs
3, // # of bits per index
code_na025Times,
code_na025Codes
};
const uint16_t code_na026Times[] PROGMEM = {
49, 49,
49, 50,
49, 410,
49, 510,
49, 12582,
};
const uint8_t code_na026Codes[] PROGMEM = {
0x09,
0x94,
0x53,
0x65,
0x32,
0x99,
0x85,
0x32,
0x8A,
0x6C,
0xA6,
0x53,
0x20,
};
conststruct IrCode code_na026Code PROGMEM = {
freq_to_timerval(39216),
34, // # of pairs
3, // # of bits per index
code_na026Times,
code_na026Codes
};

/* Duplicate timing table, same as na001 !
const uint16_t code_na027Times[] PROGMEM = {
50, 100,
50, 200,
50, 800,
400, 400,
};
*/
const uint8_t code_na027Codes[] PROGMEM = {
0xC5,
0x41,
0x11,
0x10,
0x14,
0x44,
0x6C,
0x54,
0x11,
0x11,
0x01,
0x44,
0x44,
};
conststruct IrCode code_na027Code PROGMEM = {
freq_to_timerval(57143),
52, // # of pairs
2, // # of bits per index
code_na001Times,
code_na027Codes
};
const uint16_t code_na028Times[] PROGMEM = {
118, 121,
118, 271,
118, 4750,
258, 271,
};
const uint8_t code_na028Codes[] PROGMEM = {
0xC4,
0x45,
0x14,
0x04,
0x6C,
0x44,
0x51,
0x40,
0x44,
};
conststruct IrCode code_na028Code PROGMEM = {
freq_to_timerval(38610),
36, // # of pairs
2, // # of bits per index
code_na028Times,
code_na028Codes
};
const uint16_t code_na029Times[] PROGMEM = {
88, 90,
88, 91,
88, 181,
177, 91,
177, 8976,
};
const uint8_t code_na029Codes[] PROGMEM = {
0x0C,
0x92,
0x53,
0x46,
0x16,
0x49,
0x29,
0xA2,
0xC0,
};
conststruct IrCode code_na029Code PROGMEM = {
freq_to_timerval(35842),
22, // # of pairs
3, // # of bits per index
code_na029Times,
code_na029Codes
};

/* Duplicate timing table, same as na009 !
const uint16_t code_na030Times[] PROGMEM = {
53, 56,
53, 171,
53, 3950,
53, 9599,
898, 451,
900, 226,
};
*/
const uint8_t code_na030Codes[] PROGMEM = {
0x80,
0x00,
0x41,
0x04,
0x12,
0x08,
0x20,
0x00,
0x00,
0x04,
0x92,
0x49,
0x2A,
0xBA,
0x00,
};
conststruct IrCode code_na030Code PROGMEM = {
freq_to_timerval(38462),
38, // # of pairs
3, // # of bits per index
code_na009Times,
code_na030Codes
};
const uint16_t code_na031Times[] PROGMEM = {
88, 89,
88, 90,
88, 179,
88, 8977,
177, 90,
};
const uint8_t code_na031Codes[] PROGMEM = {
0x06,
0x12,
0x49,
0x46,
0x32,
0x61,
0x24,
0x94,
0x60,
};
conststruct IrCode code_na031Code PROGMEM = {
freq_to_timerval(35842),
24, // # of pairs
3, // # of bits per index
code_na031Times,
code_na031Codes
};

/* Duplicate timing table, same as na009 !
const uint16_t code_na032Times[] PROGMEM = {
53, 56,
53, 171,
53, 3950,
53, 9599,
898, 451,
900, 226,
};
*/
const uint8_t code_na032Codes[] PROGMEM = {
0x80,
0x00,
0x41,
0x04,
0x12,
0x08,
0x20,
0x80,
0x00,
0x04,
0x12,
0x49,
0x2A,
0xBA,
0x00,
};
conststruct IrCode code_na032Code PROGMEM = {
freq_to_timerval(38462),
38, // # of pairs
3, // # of bits per index
code_na009Times,
code_na032Codes
};
const uint16_t code_na033Times[] PROGMEM = {
40, 43,
40, 122,
40, 5297,
334, 156,
336, 155,
};
const uint8_t code_na033Codes[] PROGMEM = {
0x60,
0x10,
0x40,
0x04,
0x80,
0x09,
0x00,
0x00,
0x00,
0x00,
0x10,
0x00,
0x20,
0x82,
0x00,
0x20,
0x00,
0x00,
0x0A,
0x00,
0x41,
0x00,
0x12,
0x00,
0x24,
0x00,
0x00,
0x00,
0x00,
0x40,
0x00,
0x82,
0x08,
0x00,
0x80,
0x00,
0x00,
0x00,
};
conststruct IrCode code_na033Code PROGMEM = {
freq_to_timerval(38462),
100, // # of pairs
3, // # of bits per index
code_na033Times,
code_na033Codes
};

/* Duplicate timing table, same as na004 !
const uint16_t code_na034Times[] PROGMEM = {
55, 57,
55, 170,
55, 3949,
55, 9623,
56, 0,
898, 453,
900, 226,
};
*/
const uint8_t code_na034Codes[] PROGMEM = {
0xA0,
0x00,
0x41,
0x04,
0x92,
0x08,
0x24,
0x92,
0x48,
0x00,
0x00,
0x01,
0x2B,
0x3D,
0x00,
};
conststruct IrCode code_na034Code PROGMEM = {
freq_to_timerval(38462),
38, // # of pairs
3, // # of bits per index
code_na004Times,
code_na034Codes
};
const uint16_t code_na035Times[] PROGMEM = {
96, 93,
97, 93,
97, 287,
97, 3431,
};
const uint8_t code_na035Codes[] PROGMEM = {
0x16,
0x66,
0x5D,
0x59,
0x99,
0x50,
};
conststruct IrCode code_na035Code PROGMEM = {
freq_to_timerval(41667),
22, // # of pairs
2, // # of bits per index
code_na035Times,
code_na035Codes
};
const uint16_t code_na036Times[] PROGMEM = {
82, 581,
84, 250,
84, 580,
85, 0,
};
const uint8_t code_na036Codes[] PROGMEM = {
0x15,
0x9A,
0x9C,
};
conststruct IrCode code_na036Code PROGMEM = {
freq_to_timerval(37037),
11, // # of pairs
2, // # of bits per index
code_na036Times,
code_na036Codes
};
const uint16_t code_na037Times[] PROGMEM = {
39, 263,
164, 163,
514, 164,
};
const uint8_t code_na037Codes[] PROGMEM = {
0x80,
0x45,
0x00,
};
conststruct IrCode code_na037Code PROGMEM = {
freq_to_timerval(41667),
11, // # of pairs
2, // # of bits per index
code_na037Times,
code_na037Codes
};

/* Duplicate timing table, same as na017 !
const uint16_t code_na038Times[] PROGMEM = {
56, 57,
56, 175,
56, 4150,
56, 9499,
898, 227,
898, 449,
};
*/
const uint8_t code_na038Codes[] PROGMEM = {
0xA4,
0x10,
0x40,
0x00,
0x82,
0x09,
0x20,
0x80,
0x40,
0x04,
0x12,
0x09,
0x2A,
0x38,
0x40,
};
conststruct IrCode code_na038Code PROGMEM = {
freq_to_timerval(40000),
38, // # of pairs
3, // # of bits per index
code_na017Times,
code_na038Codes
};
const uint16_t code_na039Times[] PROGMEM = {
113, 101,
688, 2707,
};
const uint8_t code_na039Codes[] PROGMEM = {
0x11,
};
conststruct IrCode code_na039Code PROGMEM = {
freq_to_timerval(40000),
4, // # of pairs
2, // # of bits per index
code_na039Times,
code_na039Codes
};
const uint16_t code_na040Times[] PROGMEM = {
113, 101,
113, 201,
113, 2707,
};
const uint8_t code_na040Codes[] PROGMEM = {
0x06,
0x04,
};
conststruct IrCode code_na040Code PROGMEM = {
freq_to_timerval(40000),
8, // # of pairs
2, // # of bits per index
code_na040Times,
code_na040Codes
};
const uint16_t code_na041Times[] PROGMEM = {
58, 62,
58, 2746,
117, 62,
242, 62,
};
const uint8_t code_na041Codes[] PROGMEM = {
0xE2,
0x20,
0x80,
0x78,
0x88,
0x20,
0x00,
};
conststruct IrCode code_na041Code PROGMEM = {
freq_to_timerval(76923),
26, // # of pairs
2, // # of bits per index
code_na041Times,
code_na041Codes
};
const uint16_t code_na042Times[] PROGMEM = {
54, 65,
54, 170,
54, 4099,
54, 8668,
899, 226,
899, 421,
};
const uint8_t code_na042Codes[] PROGMEM = {
0xA4,
0x80,
0x00,
0x20,
0x82,
0x49,
0x00,
0x02,
0x00,
0x04,
0x90,
0x49,
0x2A,
0x38,
0x40,
};
conststruct IrCode code_na042Code PROGMEM = {
freq_to_timerval(40000),
38, // # of pairs
3, // # of bits per index
code_na042Times,
code_na042Codes
};
const uint16_t code_na043Times[] PROGMEM = {
43, 120,
43, 121,
43, 3491,
131, 45,
};
const uint8_t code_na043Codes[] PROGMEM = {
0x15,
0x75,
0x56,
0x55,
0x75,
0x54,
};
conststruct IrCode code_na043Code PROGMEM = {
freq_to_timerval(40000),
24, // # of pairs
2, // # of bits per index
code_na043Times,
code_na043Codes
};
const uint16_t code_na044Times[] PROGMEM = {
51, 51,
51, 160,
51, 4096,
51, 9513,
431, 436,
883, 219,
};
const uint8_t code_na044Codes[] PROGMEM = {
0x84,
0x90,
0x00,
0x00,
0x02,
0x49,
0x20,
0x80,
0x00,
0x04,
0x12,
0x49,
0x2A,
0xBA,
0x40,
};
conststruct IrCode code_na044Code PROGMEM = {
freq_to_timerval(40000),
38, // # of pairs
3, // # of bits per index
code_na044Times,
code_na044Codes
};
const uint16_t code_na045Times[] PROGMEM = {
58, 53,
58, 167,
58, 4494,
58, 9679,
455, 449,
456, 449,
};
const uint8_t code_na045Codes[] PROGMEM = {
0x80,
0x90,
0x00,
0x00,
0x90,
0x00,
0x04,
0x92,
0x00,
0x00,
0x00,
0x49,
0x2A,
0x97,
0x48,
};
conststruct IrCode code_na045Code PROGMEM = {
freq_to_timerval(38462),
40, // # of pairs
3, // # of bits per index
code_na045Times,
code_na045Codes
};
const uint16_t code_na046Times[] PROGMEM = {
51, 277,
52, 53,
52, 105,
52, 277,
52, 2527,
52, 12809,
103, 54,
};
const uint8_t code_na046Codes[] PROGMEM = {
0x0B,
0x12,
0x63,
0x44,
0x92,
0x6B,
0x44,
0x92,
0x50,
};
conststruct IrCode code_na046Code PROGMEM = {
freq_to_timerval(29412),
23, // # of pairs
3, // # of bits per index
code_na046Times,
code_na046Codes
};

/* Duplicate timing table, same as na017 !
const uint16_t code_na047Times[] PROGMEM = {
56, 57,
56, 175,
56, 4150,
56, 9499,
898, 227,
898, 449,
};
*/
const uint8_t code_na047Codes[] PROGMEM = {
0xA0,
0x00,
0x40,
0x04,
0x92,
0x09,
0x24,
0x92,
0x09,
0x20,
0x00,
0x40,
0x0A,
0x38,
0x00,
};
conststruct IrCode code_na047Code PROGMEM = {
freq_to_timerval(40000),
38, // # of pairs
3, // # of bits per index
code_na017Times,
code_na047Codes
};

/* Duplicate timing table, same as na044 !
const uint16_t code_na048Times[] PROGMEM = {
51, 51,
51, 160,
51, 4096,
51, 9513,
431, 436,
883, 219,
};
*/
const uint8_t code_na048Codes[] PROGMEM = {
0x80,
0x00,
0x00,
0x04,
0x92,
0x49,
0x24,
0x92,
0x00,
0x00,
0x00,
0x49,
0x2A,
0xBA,
0x00,
};
conststruct IrCode code_na048Code PROGMEM = {
freq_to_timerval(40000),
38, // # of pairs
3, // # of bits per index
code_na044Times,
code_na048Codes
};
const uint16_t code_na049Times[] PROGMEM = {
274, 854,
274, 1986,
};
const uint8_t code_na049Codes[] PROGMEM = {
0x14,
0x11,
0x40,
};
conststruct IrCode code_na049Code PROGMEM = {
freq_to_timerval(45455),
11, // # of pairs
2, // # of bits per index
code_na049Times,
code_na049Codes
};
const uint16_t code_na050Times[] PROGMEM = {
80, 88,
80, 254,
80, 3750,
359, 331,
};
const uint8_t code_na050Codes[] PROGMEM = {
0xC0,
0x00,
0x01,
0x55,
0x55,
0x52,
0xC0,
0x00,
0x01,
0x55,
0x55,
0x50,
};
conststruct IrCode code_na050Code PROGMEM = {
freq_to_timerval(55556),
48, // # of pairs
2, // # of bits per index
code_na050Times,
code_na050Codes
};

/* Duplicate timing table, same as na017 !
const uint16_t code_na051Times[] PROGMEM = {
56, 57,
56, 175,
56, 4150,
56, 9499,
898, 227,
898, 449,
};
*/
const uint8_t code_na051Codes[] PROGMEM = {
0xA0,
0x10,
0x01,
0x24,
0x82,
0x48,
0x00,
0x02,
0x40,
0x04,
0x90,
0x09,
0x2A,
0x38,
0x00,
};
conststruct IrCode code_na051Code PROGMEM = {
freq_to_timerval(40000),
38, // # of pairs
3, // # of bits per index
code_na017Times,
code_na051Codes
};

/* Duplicate timing table, same as na017 !
const uint16_t code_na052Times[] PROGMEM = {
56, 57,
56, 175,
56, 4150,
56, 9499,
898, 227,
898, 449,
};
*/
const uint8_t code_na052Codes[] PROGMEM = {
0xA4,
0x90,
0x48,
0x00,
0x02,
0x01,
0x20,
0x80,
0x40,
0x04,
0x12,
0x09,
0x2A,
0x38,
0x40,
};
conststruct IrCode code_na052Code PROGMEM = {
freq_to_timerval(40000),
38, // # of pairs
3, // # of bits per index
code_na017Times,
code_na052Codes
};
const uint16_t code_na053Times[] PROGMEM = {
51, 232,
51, 512,
51, 792,
51, 2883,
};
const uint8_t code_na053Codes[] PROGMEM = {
0x22,
0x21,
0x40,
0x1C,
0x88,
0x85,
0x00,
0x40,
};
conststruct IrCode code_na053Code PROGMEM = {
freq_to_timerval(55556),
30, // # of pairs
2, // # of bits per index
code_na053Times,
code_na053Codes
};

/* Duplicate timing table, same as na053 !
const uint16_t code_na054Times[] PROGMEM = {
51, 232,
51, 512,
51, 792,
51, 2883,
};
*/
const uint8_t code_na054Codes[] PROGMEM = {
0x22,
0x20,
0x15,
0x72,
0x22,
0x01,
0x54,
};
conststruct IrCode code_na054Code PROGMEM = {
freq_to_timerval(55556),
28, // # of pairs
2, // # of bits per index
code_na053Times,
code_na054Codes
};
const uint16_t code_na055Times[] PROGMEM = {
3, 10,
3, 20,
3, 30,
3, 12778,
};
const uint8_t code_na055Codes[] PROGMEM = {
0x81,
0x51,
0x14,
0xB8,
0x15,
0x11,
0x44,
};
conststruct IrCode code_na055Code PROGMEM = {
0, // Non-pulsed code
27, // # of pairs
2, // # of bits per index
code_na055Times,
code_na055Codes
};
const uint16_t code_na056Times[] PROGMEM = {
55, 193,
57, 192,
57, 384,
58, 0,
};
const uint8_t code_na056Codes[] PROGMEM = {
0x2A,
0x57,
};
conststruct IrCode code_na056Code PROGMEM = {
freq_to_timerval(37175),
8, // # of pairs
2, // # of bits per index
code_na056Times,
code_na056Codes
};
const uint16_t code_na057Times[] PROGMEM = {
45, 148,
46, 148,
46, 351,
46, 2781,
};
const uint8_t code_na057Codes[] PROGMEM = {
0x2A,
0x5D,
0xA9,
0x60,
};
conststruct IrCode code_na057Code PROGMEM = {
freq_to_timerval(40000),
14, // # of pairs
2, // # of bits per index
code_na057Times,
code_na057Codes
};
const uint16_t code_na058Times[] PROGMEM = {
22, 101,
22, 219,
23, 101,
23, 219,
31, 218,
};
const uint8_t code_na058Codes[] PROGMEM = {
0x8D,
0xA4,
0x08,
0x04,
0x04,
0x92,
0x4C,
};
conststruct IrCode code_na058Code PROGMEM = {
freq_to_timerval(33333),
18, // # of pairs
3, // # of bits per index
code_na058Times,
code_na058Codes
};

/* Duplicate timing table, same as na017 !
const uint16_t code_na059Times[] PROGMEM = {
56, 57,
56, 175,
56, 4150,
56, 9499,
898, 227,
898, 449,
};
*/
const uint8_t code_na059Codes[] PROGMEM = {
0xA4,
0x12,
0x09,
0x00,
0x80,
0x40,
0x20,
0x10,
0x40,
0x04,
0x82,
0x09,
0x2A,
0x38,
0x40,
};
conststruct IrCode code_na059Code PROGMEM = {
freq_to_timerval(40000),
38, // # of pairs
3, // # of bits per index
code_na017Times,
code_na059Codes
};

/* Duplicate timing table, same as na017 !
const uint16_t code_na060Times[] PROGMEM = {
56, 57,
56, 175,
56, 4150,
56, 9499,
898, 227,
898, 449,
};
*/
const uint8_t code_na060Codes[] PROGMEM = {
0xA0,
0x00,
0x08,
0x04,
0x92,
0x41,
0x24,
0x00,
0x40,
0x00,
0x92,
0x09,
0x2A,
0x38,
0x00,
};
conststruct IrCode code_na060Code PROGMEM = {
freq_to_timerval(40000),
38, // # of pairs
3, // # of bits per index
code_na017Times,
code_na060Codes
};

/* Duplicate timing table, same as na017 !
const uint16_t code_na061Times[] PROGMEM = {
56, 57,
56, 175,
56, 4150,
56, 9499,
898, 227,
898, 449,
};
*/
const uint8_t code_na061Codes[] PROGMEM = {
0xA0,
0x00,
0x08,
0x24,
0x92,
0x41,
0x04,
0x82,
0x00,
0x00,
0x10,
0x49,
0x2A,
0x38,
0x00,
};
conststruct IrCode code_na061Code PROGMEM = {
freq_to_timerval(40000),
38, // # of pairs
3, // # of bits per index
code_na017Times,
code_na061Codes
};

/* Duplicate timing table, same as na017 !
const uint16_t code_na062Times[] PROGMEM = {
56, 57,
56, 175,
56, 4150,
56, 9499,
898, 227,
898, 449,
};
*/
const uint8_t code_na062Codes[] PROGMEM = {
0xA0,
0x02,
0x08,
0x04,
0x90,
0x41,
0x24,
0x82,
0x00,
0x00,
0x10,
0x49,
0x2A,
0x38,
0x00,
};
conststruct IrCode code_na062Code PROGMEM = {
freq_to_timerval(40000),
38, // # of pairs
3, // # of bits per index
code_na017Times,
code_na062Codes
};

/* Duplicate timing table, same as na017 !
const uint16_t code_na063Times[] PROGMEM = {
56, 57,
56, 175,
56, 4150,
56, 9499,
898, 227,
898, 449,
};
*/
const uint8_t code_na063Codes[] PROGMEM = {
0xA4,
0x92,
0x49,
0x20,
0x00,
0x00,
0x04,
0x92,
0x48,
0x00,
0x00,
0x01,
0x2A,
0x38,
0x40,
};
conststruct IrCode code_na063Code PROGMEM = {
freq_to_timerval(40000),
38, // # of pairs
3, // # of bits per index
code_na017Times,
code_na063Codes
};

/* Duplicate timing table, same as na001 !
const uint16_t code_na064Times[] PROGMEM = {
50, 100,
50, 200,
50, 800,
400, 400,
};
*/
const uint8_t code_na064Codes[] PROGMEM = {
0xC0,
0x01,
0x51,
0x55,
0x54,
0x04,
0x2C,
0x00,
0x15,
0x15,
0x55,
0x40,
0x40,
};
conststruct IrCode code_na064Code PROGMEM = {
freq_to_timerval(57143),
52, // # of pairs
2, // # of bits per index
code_na001Times,
code_na064Codes
};
const uint16_t code_na065Times[] PROGMEM = {
48, 98,
48, 197,
98, 846,
395, 392,
1953, 392,
};
const uint8_t code_na065Codes[] PROGMEM = {
0x84,
0x92,
0x01,
0x24,
0x12,
0x00,
0x04,
0x80,
0x08,
0x09,
0x92,
0x48,
0x04,
0x90,
0x48,
0x00,
0x12,
0x00,
0x20,
0x26,
0x49,
0x20,
0x12,
0x41,
0x20,
0x00,
0x48,
0x00,
0x80,
0x80,
};
conststruct IrCode code_na065Code PROGMEM = {
freq_to_timerval(59172),
78, // # of pairs
3, // # of bits per index
code_na065Times,
code_na065Codes
};
const uint16_t code_na066Times[] PROGMEM = {
38, 276,
165, 154,
415, 155,
742, 154,
};
const uint8_t code_na066Codes[] PROGMEM = {
0xC0,
0x45,
0x02,
0x01,
0x14,
0x08,
0x04,
0x50,
0x00,
};
conststruct IrCode code_na066Code PROGMEM = {
freq_to_timerval(38462),
33, // # of pairs
2, // # of bits per index
code_na066Times,
code_na066Codes
};

/* Duplicate timing table, same as na044 !
const uint16_t code_na067Times[] PROGMEM = {
51, 51,
51, 160,
51, 4096,
51, 9513,
431, 436,
883, 219,
};
*/
const uint8_t code_na067Codes[] PROGMEM = {
0x80,
0x02,
0x49,
0x24,
0x90,
0x00,
0x00,
0x80,
0x00,
0x04,
0x12,
0x49,
0x2A,
0xBA,
0x00,
};
conststruct IrCode code_na067Code PROGMEM = {
freq_to_timerval(40000),
38, // # of pairs
3, // # of bits per index
code_na044Times,
code_na067Codes
};
const uint16_t code_na068Times[] PROGMEM = {
43, 121,
43, 9437,
130, 45,
131, 45,
};
const uint8_t code_na068Codes[] PROGMEM = {
0x8C,
0x30,
0x0D,
0xCC,
0x30,
0x0C,
};
conststruct IrCode code_na068Code PROGMEM = {
freq_to_timerval(40000),
24, // # of pairs
2, // # of bits per index
code_na068Times,
code_na068Codes
};

/* Duplicate timing table, same as na017 !
const uint16_t code_na069Times[] PROGMEM = {
56, 57,
56, 175,
56, 4150,
56, 9499,
898, 227,
898, 449,
};
*/
const uint8_t code_na069Codes[] PROGMEM = {
0xA0,
0x00,
0x00,
0x04,
0x92,
0x49,
0x24,
0x82,
0x00,
0x00,
0x10,
0x49,
0x2A,
0x38,
0x00,
};
conststruct IrCode code_na069Code PROGMEM = {
freq_to_timerval(40000),
38, // # of pairs
3, // # of bits per index
code_na017Times,
code_na069Codes
};
const uint16_t code_na070Times[] PROGMEM = {
27, 76,
27, 182,
27, 183,
27, 3199,
};
const uint8_t code_na070Codes[] PROGMEM = {
0x40,
0x02,
0x08,
0xA2,
0xE0,
0x00,
0x82,
0x28,
0x40,
};
conststruct IrCode code_na070Code PROGMEM = {
freq_to_timerval(38462),
33, // # of pairs
2, // # of bits per index
code_na070Times,
code_na070Codes
};
const uint16_t code_na071Times[] PROGMEM = {
37, 181,
37, 272,
};
const uint8_t code_na071Codes[] PROGMEM = {
0x11,
0x40,
};
conststruct IrCode code_na071Code PROGMEM = {
freq_to_timerval(55556),
8, // # of pairs
2, // # of bits per index
code_na071Times,
code_na071Codes
};

/* Duplicate timing table, same as na042 !
const uint16_t code_na072Times[] PROGMEM = {
54, 65,
54, 170,
54, 4099,
54, 8668,
899, 226,
899, 421,
};
*/
const uint8_t code_na072Codes[] PROGMEM = {
0xA0,
0x90,
0x00,
0x00,
0x90,
0x00,
0x00,
0x10,
0x40,
0x04,
0x82,
0x09,
0x2A,
0x38,
0x00,
};
conststruct IrCode code_na072Code PROGMEM = {
freq_to_timerval(40000),
38, // # of pairs
3, // # of bits per index
code_na042Times,
code_na072Codes
};

/* Duplicate timing table, same as na017 !
const uint16_t code_na073Times[] PROGMEM = {
56, 57,
56, 175,
56, 4150,
56, 9499,
898, 227,
898, 449,
};
*/
const uint8_t code_na073Codes[] PROGMEM = {
0xA0,
0x82,
0x08,
0x24,
0x10,
0x41,
0x00,
0x00,
0x00,
0x24,
0x92,
0x49,
0x0A,
0x38,
0x00,
};
conststruct IrCode code_na073Code PROGMEM = {
freq_to_timerval(40000),
38, // # of pairs
3, // # of bits per index
code_na017Times,
code_na073Codes
};

/* Duplicate timing table, same as na017 !
const uint16_t code_na074Times[] PROGMEM = {
56, 57,
56, 175,
56, 4150,
56, 9499,
898, 227,
898, 449,
};
*/
const uint8_t code_na074Codes[] PROGMEM = {
0xA4,
0x00,
0x41,
0x00,
0x92,
0x08,
0x20,
0x02,
0x00,
0x04,
0x90,
0x49,
0x2A,
0x38,
0x40,
};
conststruct IrCode code_na074Code PROGMEM = {
freq_to_timerval(40000),
38, // # of pairs
3, // # of bits per index
code_na017Times,
code_na074Codes
};
const uint16_t code_na075Times[] PROGMEM = {
51, 98,
51, 194,
102, 931,
390, 390,
390, 391,
};
const uint8_t code_na075Codes[] PROGMEM = {
0x60,
0x00,
0x01,
0x04,
0x10,
0x49,
0x24,
0x82,
0x08,
0x2A,
0x00,
0x00,
0x04,
0x10,
0x41,
0x24,
0x92,
0x08,
0x20,
0xA0,
};
conststruct IrCode code_na075Code PROGMEM = {
freq_to_timerval(41667),
52, // # of pairs
3, // # of bits per index
code_na075Times,
code_na075Codes
};

/* Duplicate timing table, same as na017 !
const uint16_t code_na076Times[] PROGMEM = {
56, 57,
56, 175,
56, 4150,
56, 9499,
898, 227,
898, 449,
};
*/
const uint8_t code_na076Codes[] PROGMEM = {
0xA0,
0x92,
0x09,
0x04,
0x00,
0x40,
0x20,
0x10,
0x40,
0x04,
0x82,
0x09,
0x2A,
0x38,
0x00,
};
conststruct IrCode code_na076Code PROGMEM = {
freq_to_timerval(40000),
38, // # of pairs
3, // # of bits per index
code_na017Times,
code_na076Codes
};

/* Duplicate timing table, same as na031 !
const uint16_t code_na077Times[] PROGMEM = {
88, 89,
88, 90,
88, 179,
88, 8977,
177, 90,
};
*/
const uint8_t code_na077Codes[] PROGMEM = {
0x10,
0xA2,
0x62,
0x31,
0x98,
0x51,
0x31,
0x18,
0x00,
};
conststruct IrCode code_na077Code PROGMEM = {
freq_to_timerval(35714),
22, // # of pairs
3, // # of bits per index
code_na031Times,
code_na077Codes
};
const uint16_t code_na078Times[] PROGMEM = {
40, 275,
160, 154,
480, 155,
};
const uint8_t code_na078Codes[] PROGMEM = {
0x80,
0x45,
0x04,
0x01,
0x14,
0x10,
0x04,
0x50,
0x40,
};
conststruct IrCode code_na078Code PROGMEM = {
freq_to_timerval(38462),
34, // # of pairs
2, // # of bits per index
code_na078Times,
code_na078Codes
};

/* Duplicate timing table, same as na017 !
const uint16_t code_na079Times[] PROGMEM = {
56, 57,
56, 175,
56, 4150,
56, 9499,
898, 227,
898, 449,
};
*/
const uint8_t code_na079Codes[] PROGMEM = {
0xA0,
0x82,
0x08,
0x24,
0x10,
0x41,
0x04,
0x90,
0x08,
0x20,
0x02,
0x41,
0x0A,
0x38,
0x00,
};
conststruct IrCode code_na079Code PROGMEM = {
freq_to_timerval(40000),
38, // # of pairs
3, // # of bits per index
code_na017Times,
code_na079Codes
};

/* Duplicate timing table, same as na055 !
const uint16_t code_na080Times[] PROGMEM = {
3, 10,
3, 20,
3, 30,
3, 12778,
};
*/
const uint8_t code_na080Codes[] PROGMEM = {
0x81,
0x50,
0x40,
0xB8,
0x15,
0x04,
0x08,
};
conststruct IrCode code_na080Code PROGMEM = {
0, // Non-pulsed code
27, // # of pairs
2, // # of bits per index
code_na055Times,
code_na080Codes
};
const uint16_t code_na081Times[] PROGMEM = {
48, 52,
48, 409,
48, 504,
48, 9978,
};
const uint8_t code_na081Codes[] PROGMEM = {
0x18,
0x46,
0x18,
0x68,
0x47,
0x18,
0x46,
0x18,
0x68,
0x44,
};
conststruct IrCode code_na081Code PROGMEM = {
freq_to_timerval(40000),
40, // # of pairs
2, // # of bits per index
code_na081Times,
code_na081Codes
};
const uint16_t code_na082Times[] PROGMEM = {
88, 89,
88, 90,
88, 179,
88, 8888,
177, 90,
177, 179,
};
const uint8_t code_na082Codes[] PROGMEM = {
0x0A,
0x12,
0x49,
0x2A,
0xB2,
0xA1,
0x24,
0x92,
0xA8,
};
conststruct IrCode code_na082Code PROGMEM = {
freq_to_timerval(35714),
24, // # of pairs
3, // # of bits per index
code_na082Times,
code_na082Codes
};

/* Duplicate timing table, same as na031 !
const uint16_t code_na083Times[] PROGMEM = {
88, 89,
88, 90,
88, 179,
88, 8977,
177, 90,
};
*/
const uint8_t code_na083Codes[] PROGMEM = {
0x10,
0x92,
0x49,
0x46,
0x33,
0x09,
0x24,
0x94,
0x60,
};
conststruct IrCode code_na083Code PROGMEM = {
freq_to_timerval(35714),
24, // # of pairs
3, // # of bits per index
code_na031Times,
code_na083Codes
};

const uint16_t code_na084Times[] PROGMEM = {
41, 43,
41, 128,
41, 7476,
336, 171,
338, 169,
};
const uint8_t code_na084Codes[] PROGMEM = {
0x60,
0x80,
0x00,
0x00,
0x00,
0x08,
0x00,
0x00,
0x40,
0x20,
0x00,
0x00,
0x04,
0x12,
0x48,
0x04,
0x12,
0x08,
0x2A,
0x02,
0x00,
0x00,
0x00,
0x00,
0x20,
0x00,
0x01,
0x00,
0x80,
0x00,
0x00,
0x10,
0x49,
0x20,
0x10,
0x48,
0x20,
0x80,
};
conststruct IrCode code_na084Code PROGMEM = {
freq_to_timerval(37037),
100, // # of pairs
3, // # of bits per index
code_na084Times,
code_na084Codes
};
const uint16_t code_na085Times[] PROGMEM = {
55, 60,
55, 165,
55, 2284,
445, 437,
448, 436,
};
const uint8_t code_na085Codes[] PROGMEM = {
0x64,
0x00,
0x00,
0x00,
0x00,
0x40,
0x00,
0x80,
0xA1,
0x00,
0x00,
0x00,
0x00,
0x10,
0x00,
0x20,
0x10,
};
conststruct IrCode code_na085Code PROGMEM = {
freq_to_timerval(38462),
44, // # of pairs
3, // # of bits per index
code_na085Times,
code_na085Codes
};
const uint16_t code_na086Times[] PROGMEM = {
42, 46,
42, 126,
42, 6989,
347, 176,
347, 177,
};
const uint8_t code_na086Codes[] PROGMEM = {
0x60,
0x82,
0x08,
0x20,
0x82,
0x41,
0x04,
0x92,
0x00,
0x20,
0x80,
0x40,
0x00,
0x90,
0x40,
0x04,
0x00,
0x41,
0x2A,
0x02,
0x08,
0x20,
0x82,
0x09,
0x04,
0x12,
0x48,
0x00,
0x82,
0x01,
0x00,
0x02,
0x41,
0x00,
0x10,
0x01,
0x04,
0x80,
};
conststruct IrCode code_na086Code PROGMEM = {
freq_to_timerval(37175),
100, // # of pairs
3, // # of bits per index
code_na086Times,
code_na086Codes
};
const uint16_t code_na087Times[] PROGMEM = {
56, 69,
56, 174,
56, 4165,
56, 9585,
880, 222,
880, 435,
};
const uint8_t code_na087Codes[] PROGMEM = {
0xA0,
0x02,
0x40,
0x04,
0x90,
0x09,
0x20,
0x02,
0x00,
0x04,
0x90,
0x49,
0x2A,
0x38,
0x00,
};
conststruct IrCode code_na087Code PROGMEM = {
freq_to_timerval(38462),
38, // # of pairs
3, // # of bits per index
code_na087Times,
code_na087Codes
};

/* Duplicate timing table, same as na009 !
const uint16_t code_na088Times[] PROGMEM = {
53, 56,
53, 171,
53, 3950,
53, 9599,
898, 451,
900, 226,
};
*/
const uint8_t code_na088Codes[] PROGMEM = {
0x80,
0x00,
0x40,
0x04,
0x12,
0x08,
0x04,
0x92,
0x40,
0x00,
0x00,
0x09,
0x2A,
0xBA,
0x00,
};
conststruct IrCode code_na088Code PROGMEM = {
freq_to_timerval(38610),
38, // # of pairs
3, // # of bits per index
code_na009Times,
code_na088Codes
};

/* Duplicate timing table, same as na004 !
const uint16_t code_na089Times[] PROGMEM = {
55, 57,
55, 170,
55, 3949,
55, 9623,
56, 0,
898, 453,
900, 226,
};
*/
const uint8_t code_na089Codes[] PROGMEM = {
0xA0,
0x02,
0x00,
0x04,
0x90,
0x49,
0x20,
0x80,
0x40,
0x04,
0x12,
0x09,
0x2B,
0x3D,
0x00,
};
conststruct IrCode code_na089Code PROGMEM = {
freq_to_timerval(38462),
38, // # of pairs
3, // # of bits per index
code_na004Times,
code_na089Codes
};
const uint16_t code_na090Times[] PROGMEM = {
88, 90,
88, 91,
88, 181,
88, 8976,
177, 91,
177, 181,
};
const uint8_t code_na090Codes[] PROGMEM = {
0x10,
0xAB,
0x11,
0x8C,
0xC2,
0xAC,
0x46,
0x00,
};
conststruct IrCode code_na090Code PROGMEM = {
freq_to_timerval(35714),
20, // # of pairs
3, // # of bits per index
code_na090Times,
code_na090Codes
};
const uint16_t code_na091Times[] PROGMEM = {
48, 100,
48, 200,
48, 1050,
400, 400,
};
const uint8_t code_na091Codes[] PROGMEM = {
0xD5,
0x41,
0x51,
0x40,
0x14,
0x04,
0x2D,
0x54,
0x15,
0x14,
0x01,
0x40,
0x41,
};
conststruct IrCode code_na091Code PROGMEM = {
freq_to_timerval(58824),
52, // # of pairs
2, // # of bits per index
code_na091Times,
code_na091Codes
};
const uint16_t code_na092Times[] PROGMEM = {
54, 56,
54, 170,
54, 4927,
451, 447,
};
const uint8_t code_na092Codes[] PROGMEM = {
0xD1,
0x00,
0x11,
0x00,
0x04,
0x00,
0x11,
0x55,
0x6D,
0x10,
0x01,
0x10,
0x00,
0x40,
0x01,
0x15,
0x55,
};
conststruct IrCode code_na092Code PROGMEM = {
freq_to_timerval(38462),
68, // # of pairs
2, // # of bits per index
code_na092Times,
code_na092Codes
};
const uint16_t code_na093Times[] PROGMEM = {
55, 57,
55, 167,
55, 4400,
895, 448,
897, 447,
};
const uint8_t code_na093Codes[] PROGMEM = {
0x60,
0x90,
0x00,
0x20,
0x80,
0x00,
0x04,
0x02,
0x01,
0x00,
0x90,
0x48,
0x2A,
0x02,
0x40,
0x00,
0x82,
0x00,
0x00,
0x10,
0x08,
0x04,
0x02,
0x41,
0x20,
0x80,
};
conststruct IrCode code_na093Code PROGMEM = {
freq_to_timerval(38462),
68, // # of pairs
3, // # of bits per index
code_na093Times,
code_na093Codes
};

/* Duplicate timing table, same as na005 !
const uint16_t code_na094Times[] PROGMEM = {
88, 90,
88, 91,
88, 181,
88, 8976,
177, 91,
};
*/
const uint8_t code_na094Codes[] PROGMEM = {
0x10,
0x94,
0x62,
0x31,
0x98,
0x4A,
0x31,
0x18,
0x00,
};
conststruct IrCode code_na094Code PROGMEM = {
freq_to_timerval(35714),
22, // # of pairs
3, // # of bits per index
code_na005Times,
code_na094Codes
};
const uint16_t code_na095Times[] PROGMEM = {
56, 58,
56, 174,
56, 4549,
56, 9448,
440, 446,
};
const uint8_t code_na095Codes[] PROGMEM = {
0x80,
0x02,
0x00,
0x00,
0x02,
0x00,
0x04,
0x82,
0x00,
0x00,
0x10,
0x49,
0x2A,
0x17,
0x08,
};
conststruct IrCode code_na095Code PROGMEM = {
freq_to_timerval(38462),
40, // # of pairs
3, // # of bits per index
code_na095Times,
code_na095Codes
};

/* Duplicate timing table, same as na009 !
const uint16_t code_na096Times[] PROGMEM = {
53, 56,
53, 171,
53, 3950,
53, 9599,
898, 451,
900, 226,
};
*/
const uint8_t code_na096Codes[] PROGMEM = {
0x80,
0x80,
0x40,
0x04,
0x92,
0x49,
0x20,
0x92,
0x00,
0x04,
0x00,
0x49,
0x2A,
0xBA,
0x00,
};
conststruct IrCode code_na096Code PROGMEM = {
freq_to_timerval(38462),
38, // # of pairs
3, // # of bits per index
code_na009Times,
code_na096Codes
};

/* Duplicate timing table, same as na009 !
const uint16_t code_na097Times[] PROGMEM = {
53, 56,
53, 171,
53, 3950,
53, 9599,
898, 451,
900, 226,
};
*/
const uint8_t code_na097Codes[] PROGMEM = {
0x84,
0x80,
0x00,
0x24,
0x10,
0x41,
0x00,
0x80,
0x01,
0x24,
0x12,
0x48,
0x0A,
0xBA,
0x40,
};
conststruct IrCode code_na097Code PROGMEM = {
freq_to_timerval(38462),
38, // # of pairs
3, // # of bits per index
code_na009Times,
code_na097Codes
};

/* Duplicate timing table, same as na004 !
const uint16_t code_na098Times[] PROGMEM = {
55, 57,
55, 170,
55, 3949,
55, 9623,
56, 0,
898, 453,
900, 226,
};
*/
const uint8_t code_na098Codes[] PROGMEM = {
0xA0,
0x00,
0x00,
0x04,
0x92,
0x49,
0x24,
0x00,
0x41,
0x00,
0x92,
0x08,
0x2B,
0x3D,
0x00,
};
conststruct IrCode code_na098Code PROGMEM = {
freq_to_timerval(38462),
38, // # of pairs
3, // # of bits per index
code_na004Times,
code_na098Codes
};

/* Duplicate timing table, same as na009 !
const uint16_t code_na099Times[] PROGMEM = {
53, 56,
53, 171,
53, 3950,
53, 9599,
898, 451,
900, 226,
};
*/
const uint8_t code_na099Codes[] PROGMEM = {
0x80,
0x00,
0x00,
0x04,
0x12,
0x48,
0x24,
0x00,
0x00,
0x00,
0x92,
0x49,
0x2A,
0xBA,
0x00,
};
conststruct IrCode code_na099Code PROGMEM = {
freq_to_timerval(38462),
38, // # of pairs
3, // # of bits per index
code_na009Times,
code_na099Codes
};
const uint16_t code_na100Times[] PROGMEM = {
43, 171,
45, 60,
45, 170,
54, 2301,
};
const uint8_t code_na100Codes[] PROGMEM = {
0x29,
0x59,
0x65,
0x55,
0xEA,
0x56,
0x59,
0x55,
0x70,
};
conststruct IrCode code_na100Code PROGMEM = {
freq_to_timerval(35842),
34, // # of pairs
2, // # of bits per index
code_na100Times,
code_na100Codes
};

/* Duplicate timing table, same as na004 !
const uint16_t code_na101Times[] PROGMEM = {
55, 57,
55, 170,
55, 3949,
55, 9623,
56, 0,
898, 453,
900, 226,
};
*/
const uint8_t code_na101Codes[] PROGMEM = {
0xA0,
0x00,
0x09,
0x04,
0x92,
0x40,
0x20,
0x00,
0x00,
0x04,
0x92,
0x49,
0x2B,
0x3D,
0x00,
};
conststruct IrCode code_na101Code PROGMEM = {
freq_to_timerval(38462),
38, // # of pairs
3, // # of bits per index
code_na004Times,
code_na101Codes
};
const uint16_t code_na102Times[] PROGMEM = {
86, 87,
86, 258,
86, 3338,
346, 348,
348, 347,
};
const uint8_t code_na102Codes[] PROGMEM = {
0x64,
0x02,
0x08,
0x00,
0x02,
0x09,
0x04,
0x12,
0x49,
0x0A,
0x10,
0x08,
0x20,
0x00,
0x08,
0x24,
0x10,
0x49,
0x24,
0x10,
};
conststruct IrCode code_na102Code PROGMEM = {
freq_to_timerval(40000),
52, // # of pairs
3, // # of bits per index
code_na102Times,
code_na102Codes
};

/* Duplicate timing table, same as na045 !
const uint16_t code_na103Times[] PROGMEM = {
58, 53,
58, 167,
58, 4494,
58, 9679,
455, 449,
456, 449,
};
*/
const uint8_t code_na103Codes[] PROGMEM = {
0x80,
0x02,
0x00,
0x00,
0x02,
0x00,
0x04,
0x92,
0x00,
0x00,
0x00,
0x49,
0x2A,
0x97,
0x48,
};
conststruct IrCode code_na103Code PROGMEM = {
freq_to_timerval(38462),
40, // # of pairs
3, // # of bits per index
code_na045Times,
code_na103Codes
};

/* Duplicate timing table, same as na017 !
const uint16_t code_na104Times[] PROGMEM = {
56, 57,
56, 175,
56, 4150,
56, 9499,
898, 227,
898, 449,
};
*/
const uint8_t code_na104Codes[] PROGMEM = {
0xA4,
0x00,
0x49,
0x00,
0x92,
0x00,
0x20,
0x02,
0x00,
0x04,
0x90,
0x49,
0x2A,
0x38,
0x40,
};
conststruct IrCode code_na104Code PROGMEM = {
freq_to_timerval(40000),
38, // # of pairs
3, // # of bits per index
code_na017Times,
code_na104Codes
};

/* Duplicate timing table, same as na017 !
const uint16_t code_na105Times[] PROGMEM = {
56, 57,
56, 175,
56, 4150,
56, 9499,
898, 227,
898, 449,
};
*/
const uint8_t code_na105Codes[] PROGMEM = {
0xA4,
0x80,
0x00,
0x20,
0x12,
0x49,
0x04,
0x92,
0x49,
0x20,
0x00,
0x00,
0x0A,
0x38,
0x40,
};
conststruct IrCode code_na105Code PROGMEM = {
freq_to_timerval(40000),
38, // # of pairs
3, // # of bits per index
code_na017Times,
code_na105Codes
};

/* Duplicate timing table, same as na044 !
const uint16_t code_na106Times[] PROGMEM = {
51, 51,
51, 160,
51, 4096,
51, 9513,
431, 436,
883, 219,
};
*/
const uint8_t code_na106Codes[] PROGMEM = {
0x80,
0x02,
0x00,
0x04,
0x90,
0x49,
0x24,
0x92,
0x00,
0x00,
0x00,
0x49,
0x2A,
0xBA,
0x00,
};
conststruct IrCode code_na106Code PROGMEM = {
freq_to_timerval(40000),
38, // # of pairs
3, // # of bits per index
code_na044Times,
code_na106Codes
};

/* Duplicate timing table, same as na045 !
const uint16_t code_na107Times[] PROGMEM = {
58, 53,
58, 167,
58, 4494,
58, 9679,
455, 449,
456, 449,
};
*/
const uint8_t code_na107Codes[] PROGMEM = {
0x80,
0x00,
0x00,
0x00,
0x00,
0x00,
0x04,
0x92,
0x00,
0x00,
0x00,
0x49,
0x2A,
0x97,
0x48,
};
conststruct IrCode code_na107Code PROGMEM = {
freq_to_timerval(38462),
40, // # of pairs
3, // # of bits per index
code_na045Times,
code_na107Codes
};

/* Duplicate timing table, same as na045 !
const uint16_t code_na108Times[] PROGMEM = {
58, 53,
58, 167,
58, 4494,
58, 9679,
455, 449,
456, 449,
};
*/
const uint8_t code_na108Codes[] PROGMEM = {
0x80,
0x90,
0x40,
0x00,
0x90,
0x40,
0x04,
0x92,
0x00,
0x00,
0x00,
0x49,
0x2A,
0x97,
0x48,
};
conststruct IrCode code_na108Code PROGMEM = {
freq_to_timerval(38462),
40, // # of pairs
3, // # of bits per index
code_na045Times,
code_na108Codes
};
const uint16_t code_na109Times[] PROGMEM = {
58, 61,
58, 211,
58, 9582,
73, 4164,
883, 211,
1050, 494,
};
const uint8_t code_na109Codes[] PROGMEM = {
0xA0,
0x00,
0x08,
0x24,
0x92,
0x41,
0x00,
0x82,
0x00,
0x04,
0x10,
0x49,
0x2E,
0x28,
0x00,
};
conststruct IrCode code_na109Code PROGMEM = {
freq_to_timerval(40000),
38, // # of pairs
3, // # of bits per index
code_na109Times,
code_na109Codes
};

/* Duplicate timing table, same as na017 !
const uint16_t code_na110Times[] PROGMEM = {
56, 57,
56, 175,
56, 4150,
56, 9499,
898, 227,
898, 449,
};
*/
const uint8_t code_na110Codes[] PROGMEM = {
0xA4,
0x80,
0x00,
0x20,
0x12,
0x49,
0x00,
0x02,
0x00,
0x04,
0x90,
0x49,
0x2A,
0x38,
0x40,
};
conststruct IrCode code_na110Code PROGMEM = {
freq_to_timerval(40161),
38, // # of pairs
3, // # of bits per index
code_na017Times,
code_na110Codes
};

/* Duplicate timing table, same as na044 !
const uint16_t code_na111Times[] PROGMEM = {
51, 51,
51, 160,
51, 4096,
51, 9513,
431, 436,
883, 219,
};
*/
const uint8_t code_na111Codes[] PROGMEM = {
0x84,
0x92,
0x49,
0x20,
0x00,
0x00,
0x04,
0x92,
0x00,
0x00,
0x00,
0x49,
0x2A,
0xBA,
0x40,
};
conststruct IrCode code_na111Code PROGMEM = {
freq_to_timerval(40000),
38, // # of pairs
3, // # of bits per index
code_na044Times,
code_na111Codes
};

/* Duplicate timing table, same as na004 !
const uint16_t code_na112Times[] PROGMEM = {
55, 57,
55, 170,
55, 3949,
55, 9623,
56, 0,
898, 453,
900, 226,
};
*/
const uint8_t code_na112Codes[] PROGMEM = {
0xA4,
0x00,
0x00,
0x00,
0x92,
0x49,
0x24,
0x00,
0x00,
0x00,
0x92,
0x49,
0x2B,
0x3D,
0x00,
};
conststruct IrCode code_na112Code PROGMEM = {
freq_to_timerval(38462),
38, // # of pairs
3, // # of bits per index
code_na004Times,
code_na112Codes
};
const uint16_t code_na113Times[] PROGMEM = {
56, 54,
56, 166,
56, 3945,
896, 442,
896, 443,
};
const uint8_t code_na113Codes[] PROGMEM = {
0x60,
0x00,
0x00,
0x20,
0x02,
0x09,
0x04,
0x02,
0x01,
0x00,
0x90,
0x48,
0x2A,
0x00,
0x00,
0x00,
0x80,
0x08,
0x24,
0x10,
0x08,
0x04,
0x02,
0x41,
0x20,
0x80,
};
conststruct IrCode code_na113Code PROGMEM = {
freq_to_timerval(40000),
68, // # of pairs
3, // # of bits per index
code_na113Times,
code_na113Codes
};
const uint16_t code_na114Times[] PROGMEM = {
44, 50,
44, 147,
44, 447,
44, 2236,
791, 398,
793, 397,
};
const uint8_t code_na114Codes[] PROGMEM = {
0x84,
0x10,
0x40,
0x08,
0x82,
0x08,
0x01,
0xD2,
0x08,
0x20,
0x04,
0x41,
0x04,
0x00,
0x40,
};
conststruct IrCode code_na114Code PROGMEM = {
freq_to_timerval(40000),
38, // # of pairs
3, // # of bits per index
code_na114Times,
code_na114Codes
};

const uint16_t code_na115Times[] PROGMEM = {
81, 86,
81, 296,
81, 3349,
328, 331,
329, 331,
};
const uint8_t code_na115Codes[] PROGMEM = {
0x60,
0x82,
0x00,
0x20,
0x80,
0x41,
0x04,
0x90,
0x41,
0x2A,
0x02,
0x08,
0x00,
0x82,
0x01,
0x04,
0x12,
0x41,
0x04,
0x80,
};
conststruct IrCode code_na115Code PROGMEM = {
freq_to_timerval(40000),
52, // # of pairs
3, // # of bits per index
code_na115Times,
code_na115Codes
};

/* Duplicate timing table, same as na017 !
const uint16_t code_na116Times[] PROGMEM = {
56, 57,
56, 175,
56, 4150,
56, 9499,
898, 227,
898, 449,
};
*/
const uint8_t code_na116Codes[] PROGMEM = {
0xA0,
0x00,
0x40,
0x04,
0x92,
0x09,
0x24,
0x00,
0x40,
0x00,
0x92,
0x09,
0x2A,
0x38,
0x00,
};
conststruct IrCode code_na116Code PROGMEM = {
freq_to_timerval(40000),
38, // # of pairs
3, // # of bits per index
code_na017Times,
code_na116Codes
};
const uint16_t code_na117Times[] PROGMEM = {
49, 54,
49, 158,
49, 420,
49, 2446,
819, 420,
821, 419,
};
const uint8_t code_na117Codes[] PROGMEM = {
0x84,
0x00,
0x00,
0x08,
0x12,
0x40,
0x01,
0xD2,
0x00,
0x00,
0x04,
0x09,
0x20,
0x00,
0x40,
};
conststruct IrCode code_na117Code PROGMEM = {
freq_to_timerval(41667),
38, // # of pairs
3, // # of bits per index
code_na117Times,
code_na117Codes
};

/* Duplicate timing table, same as na044 !
const uint16_t code_na118Times[] PROGMEM = {
51, 51,
51, 160,
51, 4096,
51, 9513,
431, 436,
883, 219,
};
*/
const uint8_t code_na118Codes[] PROGMEM = {
0x84,
0x90,
0x49,
0x20,
0x02,
0x00,
0x04,
0x92,
0x00,
0x00,
0x00,
0x49,
0x2A,
0xBA,
0x40,
};
conststruct IrCode code_na118Code PROGMEM = {
freq_to_timerval(40000),
38, // # of pairs
3, // # of bits per index
code_na044Times,
code_na118Codes
};
const uint16_t code_na119Times[] PROGMEM = {
55, 63,
55, 171,
55, 4094,
55, 9508,
881, 219,
881, 438,
};
const uint8_t code_na119Codes[] PROGMEM = {
0xA0,
0x10,
0x00,
0x04,
0x82,
0x49,
0x20,
0x02,
0x00,
0x04,
0x90,
0x49,
0x2A,
0x38,
0x00,
};
conststruct IrCode code_na119Code PROGMEM = {
freq_to_timerval(55556),
38, // # of pairs
3, // # of bits per index
code_na119Times,
code_na119Codes
};

/* Duplicate timing table, same as na017 !
const uint16_t code_na120Times[] PROGMEM = {
56, 57,
56, 175,
56, 4150,
56, 9499,
898, 227,
898, 449,
};
*/
const uint8_t code_na120Codes[] PROGMEM = {
0xA0,
0x12,
0x00,
0x04,
0x80,
0x49,
0x24,
0x92,
0x40,
0x00,
0x00,
0x09,
0x2A,
0x38,
0x00,
};
conststruct IrCode code_na120Code PROGMEM = {
freq_to_timerval(40000),
38, // # of pairs
3, // # of bits per index
code_na017Times,
code_na120Codes
};

/* Duplicate timing table, same as na017 !
const uint16_t code_na121Times[] PROGMEM = {
56, 57,
56, 175,
56, 4150,
56, 9499,
898, 227,
898, 449,
};
*/
const uint8_t code_na121Codes[] PROGMEM = {
0xA0,
0x00,
0x40,
0x04,
0x92,
0x09,
0x20,
0x02,
0x00,
0x04,
0x90,
0x49,
0x2A,
0x38,
0x00,
};
conststruct IrCode code_na121Code PROGMEM = {
freq_to_timerval(40000),
38, // # of pairs
3, // # of bits per index
code_na017Times,
code_na121Codes
};
const uint16_t code_na122Times[] PROGMEM = {
80, 95,
80, 249,
80, 3867,
81, 0,
329, 322,
};
const uint8_t code_na122Codes[] PROGMEM = {
0x80,
0x00,
0x00,
0x00,
0x12,
0x49,
0x24,
0x90,
0x0A,
0x80,
0x00,
0x00,
0x00,
0x12,
0x49,
0x24,
0x90,
0x0B,
};
conststruct IrCode code_na122Code PROGMEM = {
freq_to_timerval(52632),
48, // # of pairs
3, // # of bits per index
code_na122Times,
code_na122Codes
};

/* Duplicate timing table, same as na017 !
const uint16_t code_na123Times[] PROGMEM = {
56, 57,
56, 175,
56, 4150,
56, 9499,
898, 227,
898, 449,
};
*/
const uint8_t code_na123Codes[] PROGMEM = {
0xA0,
0x02,
0x48,
0x04,
0x90,
0x01,
0x20,
0x12,
0x40,
0x04,
0x80,
0x09,
0x2A,
0x38,
0x00,
};
conststruct IrCode code_na123Code PROGMEM = {
freq_to_timerval(40000),
38, // # of pairs
3, // # of bits per index
code_na017Times,
code_na123Codes
};
const uint16_t code_na124Times[] PROGMEM = {
54, 56,
54, 151,
54, 4092,
54, 8677,
900, 421,
901, 226,
};
const uint8_t code_na124Codes[] PROGMEM = {
0x80,
0x00,
0x48,
0x04,
0x92,
0x01,
0x20,
0x00,
0x00,
0x04,
0x92,
0x49,
0x2A,
0xBA,
0x00,
};
conststruct IrCode code_na124Code PROGMEM = {
freq_to_timerval(40000),
38, // # of pairs
3, // # of bits per index
code_na124Times,
code_na124Codes
};

/* Duplicate timing table, same as na119 !
const uint16_t code_na125Times[] PROGMEM = {
55, 63,
55, 171,
55, 4094,
55, 9508,
881, 219,
881, 438,
};
*/
const uint8_t code_na125Codes[] PROGMEM = {
0xA0,
0x02,
0x48,
0x04,
0x90,
0x01,
0x20,
0x80,
0x40,
0x04,
0x12,
0x09,
0x2A,
0x38,
0x00,
};
conststruct IrCode code_na125Code PROGMEM = {
freq_to_timerval(55556),
38, // # of pairs
3, // # of bits per index
code_na119Times,
code_na125Codes
};

/* Duplicate timing table, same as na017 !
const uint16_t code_na126Times[] PROGMEM = {
56, 57,
56, 175,
56, 4150,
56, 9499,
898, 227,
898, 449,
};
*/
const uint8_t code_na126Codes[] PROGMEM = {
0xA4,
0x10,
0x00,
0x20,
0x82,
0x49,
0x00,
0x02,
0x00,
0x04,
0x90,
0x49,
0x2A,
0x38,
0x40,
};
conststruct IrCode code_na126Code PROGMEM = {
freq_to_timerval(40000),
38, // # of pairs
3, // # of bits per index
code_na017Times,
code_na126Codes
};
const uint16_t code_na127Times[] PROGMEM = {
114, 100,
115, 100,
115, 200,
115, 2706,
};
const uint8_t code_na127Codes[] PROGMEM = {
0x1B,
0x59,
};
conststruct IrCode code_na127Code PROGMEM = {
freq_to_timerval(25641),
8, // # of pairs
2, // # of bits per index
code_na127Times,
code_na127Codes
};

/* Duplicate timing table, same as na102 !
const uint16_t code_na128Times[] PROGMEM = {
86, 87,
86, 258,
86, 3338,
346, 348,
348, 347,
};
*/
const uint8_t code_na128Codes[] PROGMEM = {
0x60,
0x02,
0x08,
0x00,
0x02,
0x49,
0x04,
0x12,
0x49,
0x0A,
0x00,
0x08,
0x20,
0x00,
0x09,
0x24,
0x10,
0x49,
0x24,
0x00,
};
conststruct IrCode code_na128Code PROGMEM = {
freq_to_timerval(40000),
52, // # of pairs
3, // # of bits per index
code_na102Times,
code_na128Codes
};

/* Duplicate timing table, same as na017 !
const uint16_t code_na129Times[] PROGMEM = {
56, 57,
56, 175,
56, 4150,
56, 9499,
898, 227,
898, 449,
};
*/
const uint8_t code_na129Codes[] PROGMEM = {
0xA4,
0x92,
0x49,
0x20,
0x00,
0x00,
0x00,
0x02,
0x00,
0x04,
0x90,
0x49,
0x2A,
0x38,
0x40,
};
conststruct IrCode code_na129Code PROGMEM = {
freq_to_timerval(40000),
38, // # of pairs
3, // # of bits per index
code_na017Times,
code_na129Codes
};
const uint16_t code_na130Times[] PROGMEM = {
88, 90,
88, 258,
88, 2247,
358, 349,
358, 350,
};
const uint8_t code_na130Codes[] PROGMEM = {
0x64,
0x00,
0x08,
0x24,
0x82,
0x09,
0x24,
0x10,
0x01,
0x0A,
0x10,
0x00,
0x20,
0x92,
0x08,
0x24,
0x90,
0x40,
0x04,
0x10,
};
conststruct IrC
